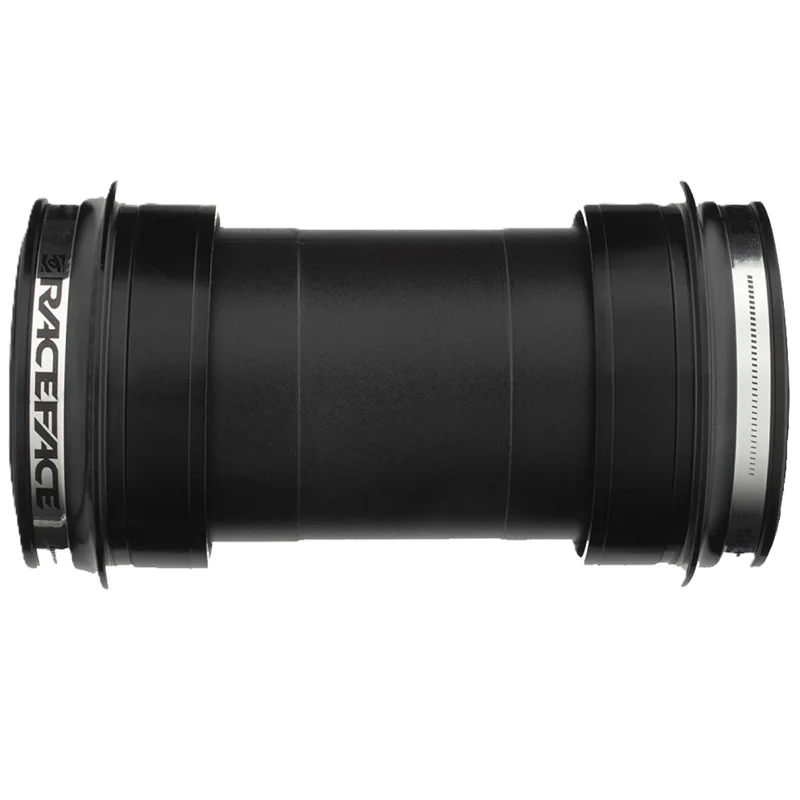

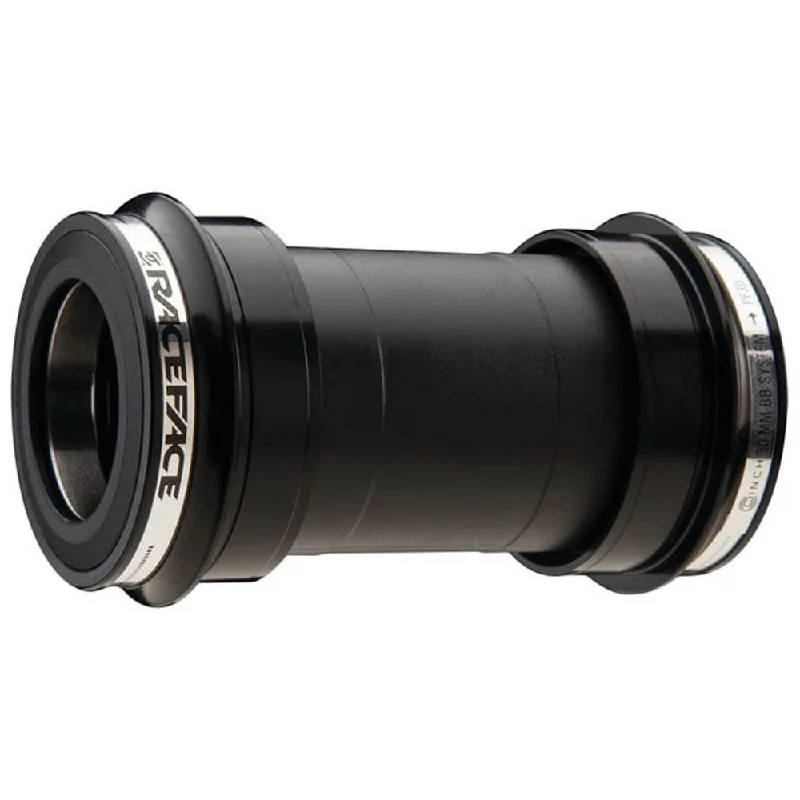

Race Face PF30 30mm Bottom Bracket


In stock

SKU: BB19PF30687330 Categories: , , ,

The Race Face PF30 30mm Bottom Bracket has a Precise fit, smooth-rolling operation, long-living performance! Install a 30mm CINCH crankset PF30 and get riding…and keep riding.

Rolling Deep! The PF30 bottom bracket uses reliable 6806 retainer bearings packed with waterproof grease along with wiper seals to keep the gunk out.

Close Enough Won’t Cut It! We fired up the old CNC machine to make sure the anodized 30mm alloy cups of this Race Face PF30 30mm bottom bracket provide an exact, perfect quiet fit for your frame.

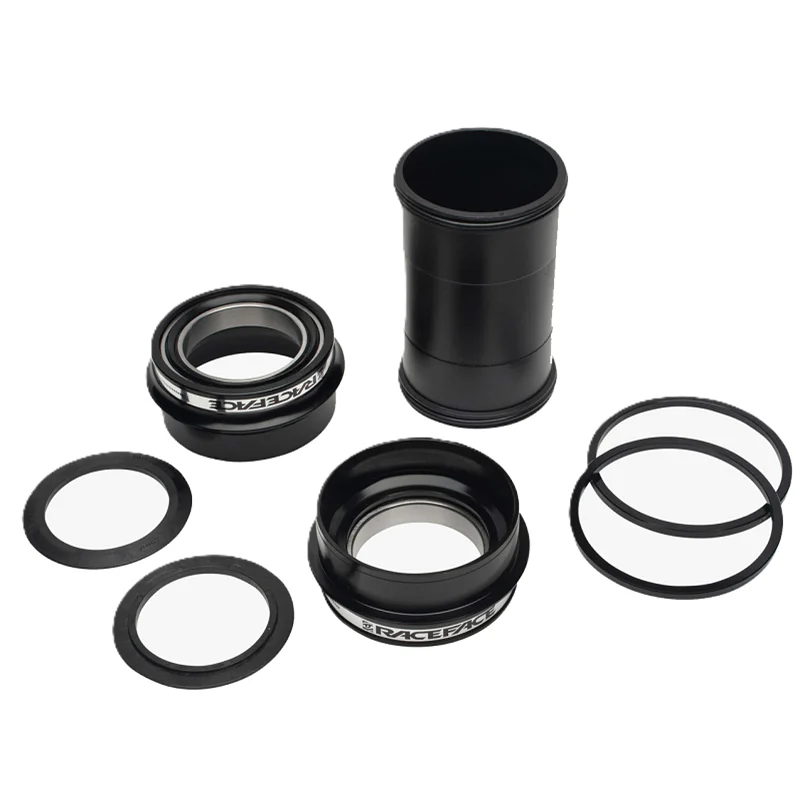

Weather, Or Not! All RF bottom brackets come with an inner plastic sleeve to keep the elements out and the appropriate spacers to ensure a perfect fit.


  • Standard 6806 retainer bearings
  • BB Diameter: 46mm
  • Shell Standard: Press Fit 30
  • Use with 30mm Spindle Cranksets
  • Bearings are external to the BB shell resulting in a stiffer wider stance
  • Bearings are factory filled with Phil wood grease
  • Cups are machined for a high tolerance frame fit
  • Compatibility: ⍉46 Press-fit shells – Eg. PF30
  • Weight: 106g
  • Shell Width (MM) – 68/73, 100 (120 no sleeve), 83

Race Face PF30 BB_Installation Guide
