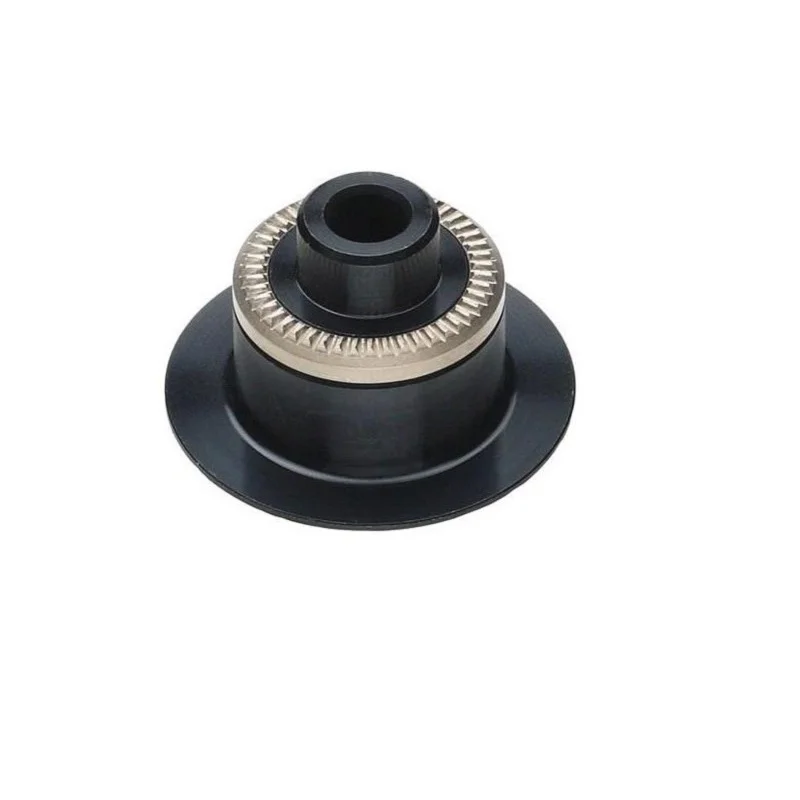

DT SWISS End Cap | Shimano MTB Freehubs (QR)


In stock

SKU: HWAXXX00S1043S Categories: , , ,

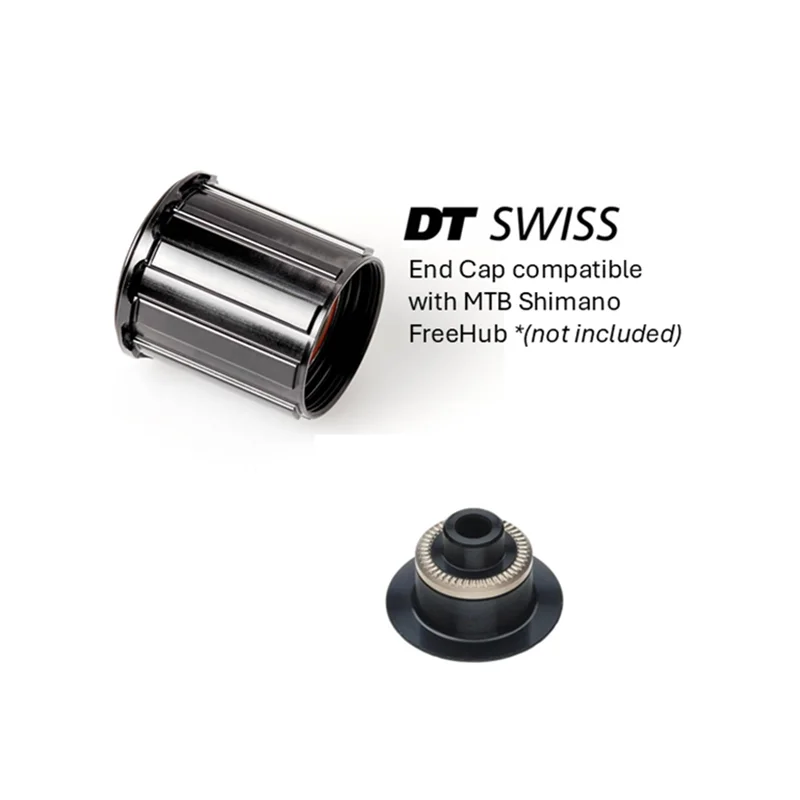

The DT SWISS End Cap pairs with DT SWISS hubs to convert Shimano MTB drivetrain, that uses QR axle system. Use with the Shimano Freehub HG.

Converts DT SWISS 180, 240, 350 or MTB hubs in Classic or Straightpull to Shimano drivetrain in either 130mm or 135mm spacing.

Note: DT SWISS Shimano Freehub HG doesn’t include Drive Side End Caps.


  • Axle system: 5mm Quick Release / RWS
  • Axle: 5mm x 130mm, 5mm x 135mm
  • Brake Interface: 6-Bolt (IS), Centre-Lock (CL), Rim Brake
  • Drivetrain: Shimano
  • Spoke Interface: J-Bend, Straight Pull
  • Weight: 8g
  • Compatibility: DT SWISS Freehub for Shimano

For a comprehensive list of all spare parts, both user and technical manuals, as well as available conversion kits applicable to this specific product model view the official DT Swiss support page:

The Caps are used with the: DT SWISS Shimano Freehub HG | Star Ratchet & EXP , DT SWISS Shimano 12spd Freehub | Star Ratchet & EXP – Steel and DT SWISS Shimano HG Freehub | Star Ratchet & EXP – Steel
