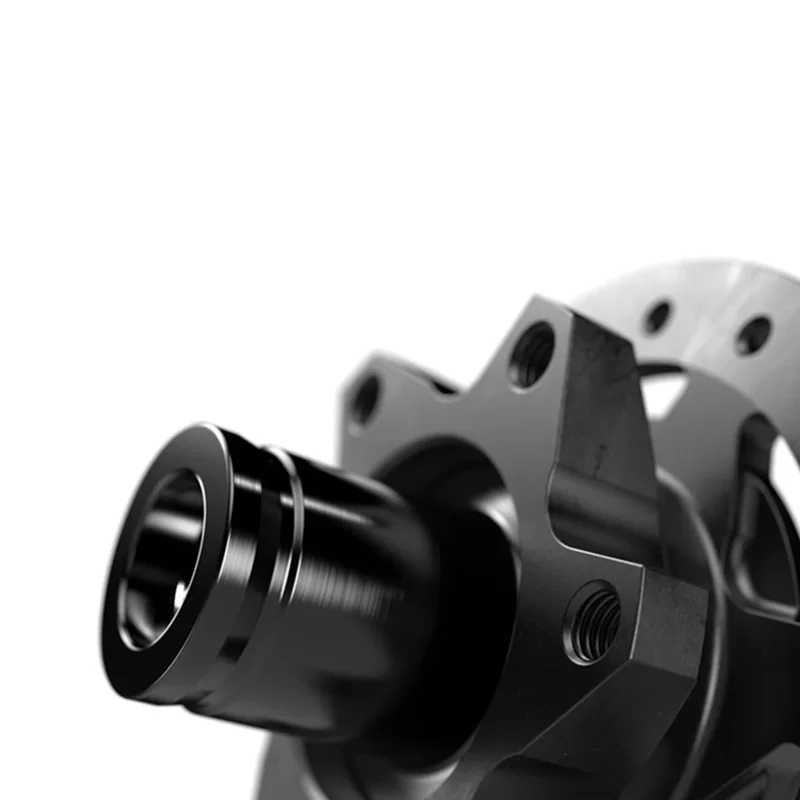

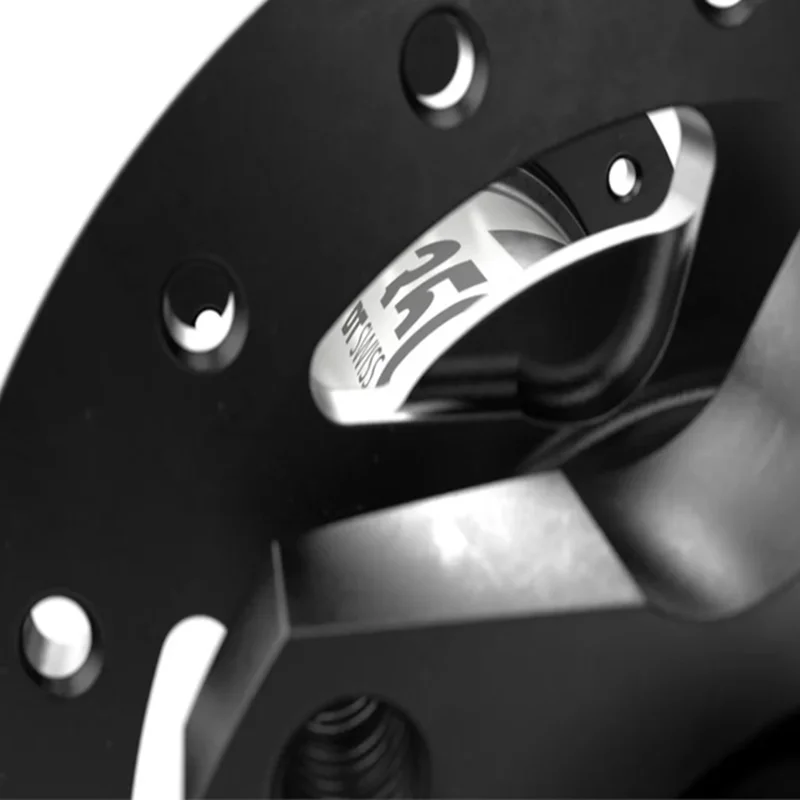

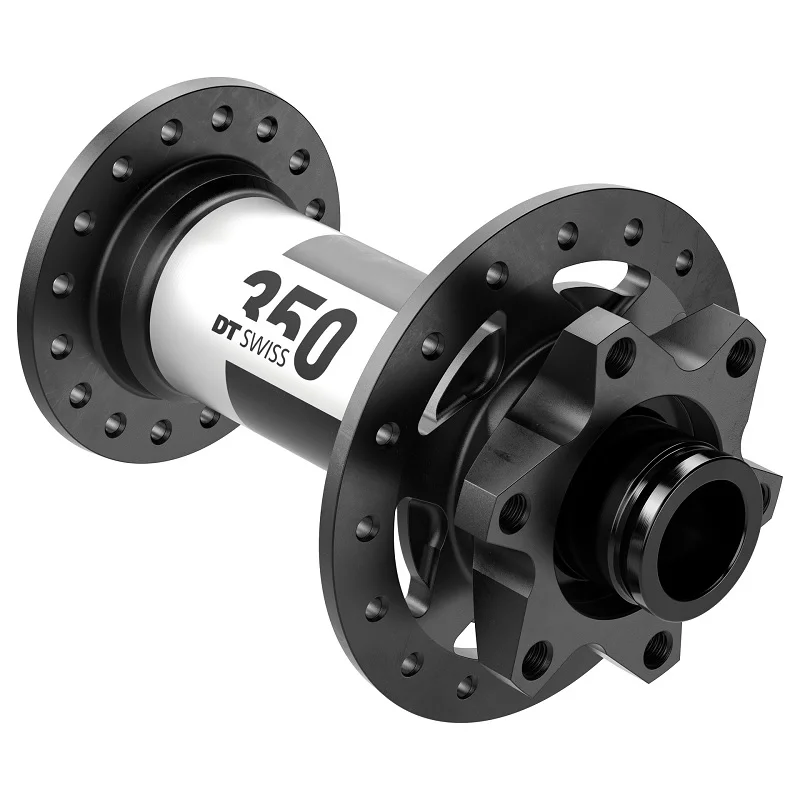

DT SWISS 350 MTB Front Hub | Boost – Jbend – Disc IS

The DT SWISS 350 MTB Front Hub is reliable, versatile and has LESS weight! Jbend spokes, Disc IS (6-Bolt) brake Interface & wider Axle.

Thanks to the proven Ratchet freewheel system, the DT SWISS 350 MTB Hub is a reliable partner for every adventure. The 36 toothed pulleys ensure a direct power transmission. The well thought-out, yet simple design of the hub allows for a low weight with excellent rolling characteristics.

Moreover, the DT SWISS 350 MTB Front Hub, not only allows the cyclist to maintain their freewheel system without special tools, but also to convert it to the different standards. The aim with the 350 was to develop a reliable hub that supports cyclists in their independence.

Details:

• Field of application: MTB, AllMtn, Dirt Jump, Enduro, Trail, XC
• Product type: 350
• Product family: CLASSIC
• Axle system: 15 mm Thru axle
• Axle: 15mm x 110mm
• Built-in dimension: 110mm Boost
• Weight: 164g
• Hole count (default): 28 / 32
• Brake interface: Disc brake IS (6-bolt)

TERMINOLOGY

 Axle System: Thru-axle is a wheel mounting system. RWS technology from DT Swiss gives quick, precise mounting by turning an easily adjustable lever. The Thru-axle systems guarantee a rigid and secure connection between the wheel and frame. Check compatibility with the frame and fork for built-in-width, diameter, and thread of the axle, defined by the frame and fork manufacturer.

Brake Interface: Disc IS (6-bolt) (abv. for International Standard). The disc brake is mounted via 6 individual screws on the hub. In the event of a repair on the trail, no special tool is needed for disassembly, most MiniTool’s have a T25 Torx for disassembly of the six screws.

Built-In Dimension: 110mm Boost refers to wider axle dimensions. Frame and fork manufacturers use this to build a stiffer bike overall. Use a flatter spoke angle on the wheel to increase flange distance. This will improve symmetry and increase stiffness on large wheels.

Spoke Interface: Jbend Classic is a traditional type of spoke. Characterized by the 90-degree bend in the spoke head at one end, resembling the letter J.

For a comprehensive list of all spare parts, both user and technical manuals, as well as available conversion kits applicable to this specific product model view the official DT Swiss support page: https://www.dtswiss.com/en/support/product-support
