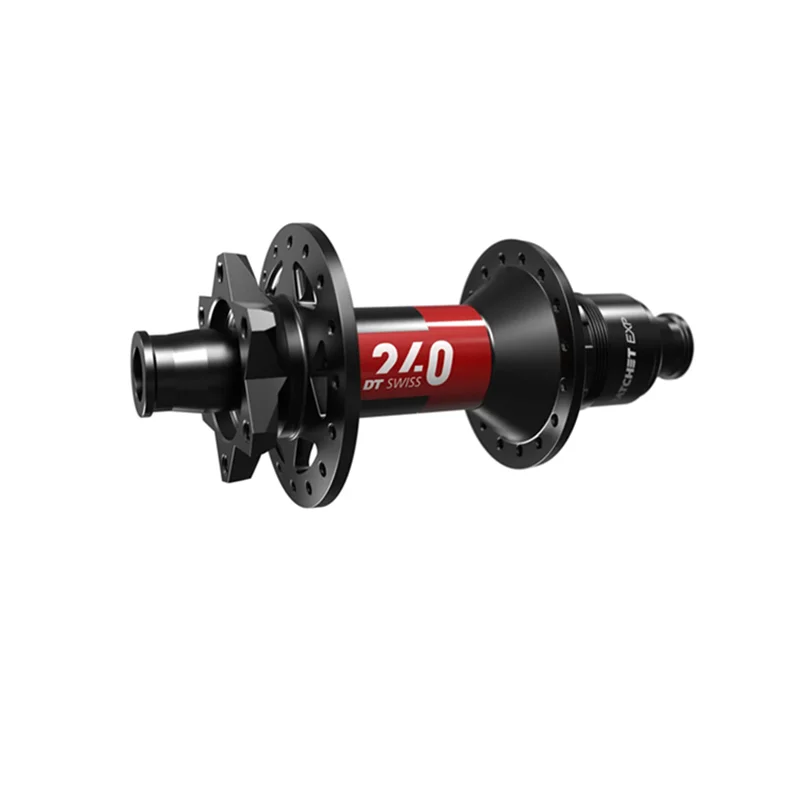

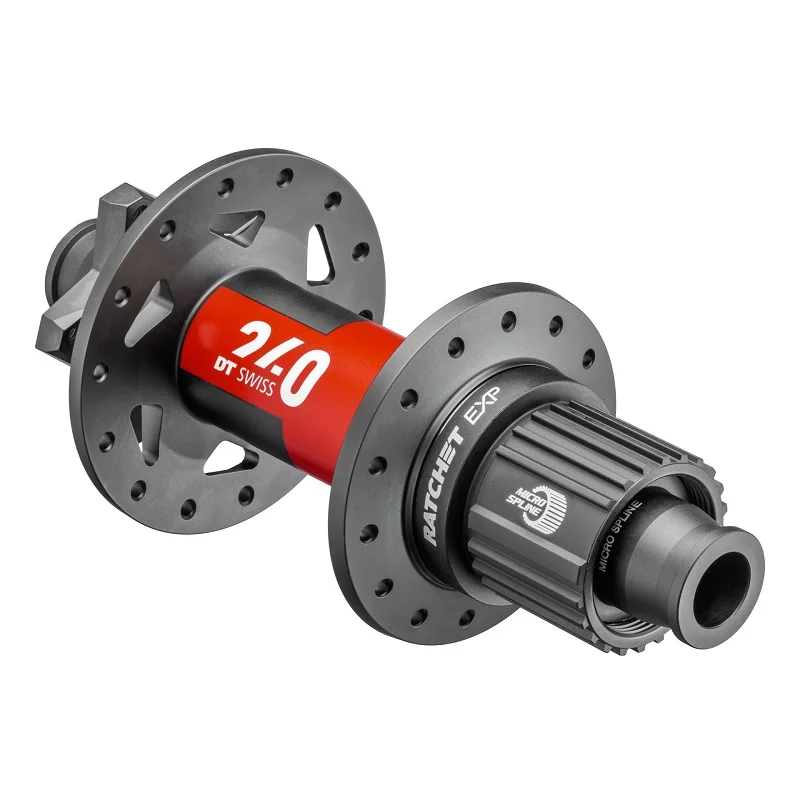

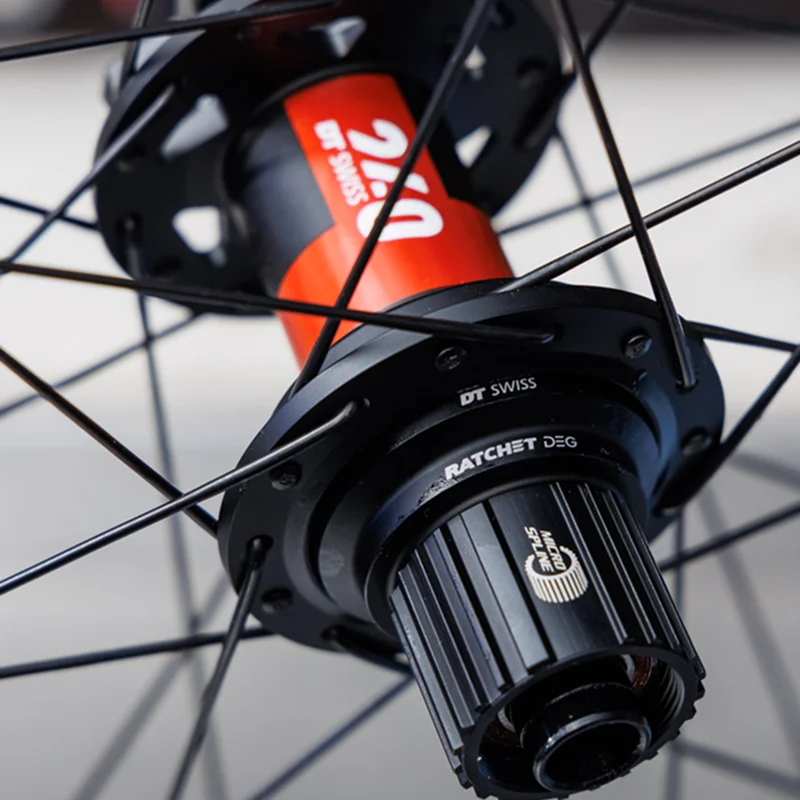

DT SWISS 240 MTB Rear Hub | Boost – Jbend – Disc IS

R9,335.00

In stock

SKU: H240TDD2R32SA7273S Categories: , , ,

The new DT SWISS 240 MTB Rear Hub with Ratchet EXP is lighter, stiffer, more precise, and easier to maintain hub. Jbend Classic Spokes, Disc IS (6-Bolt) brake Interface and wider Axle system.

Details:

  • Discipline: AllMtn, Enduro, XC, Trail
  • Product type: 240
  • Spoke Interface: CLASSIC Jbend
  • Axle system: 12mm Thru Axle
  • Built-in dimension: 148mm Boost
  • Weight: 231g
  • Hole count: 32
  • Brake interface: Disc IS (6-Bolt)
  • Free hub body (default): SRAM XD MTB (ASRAM)

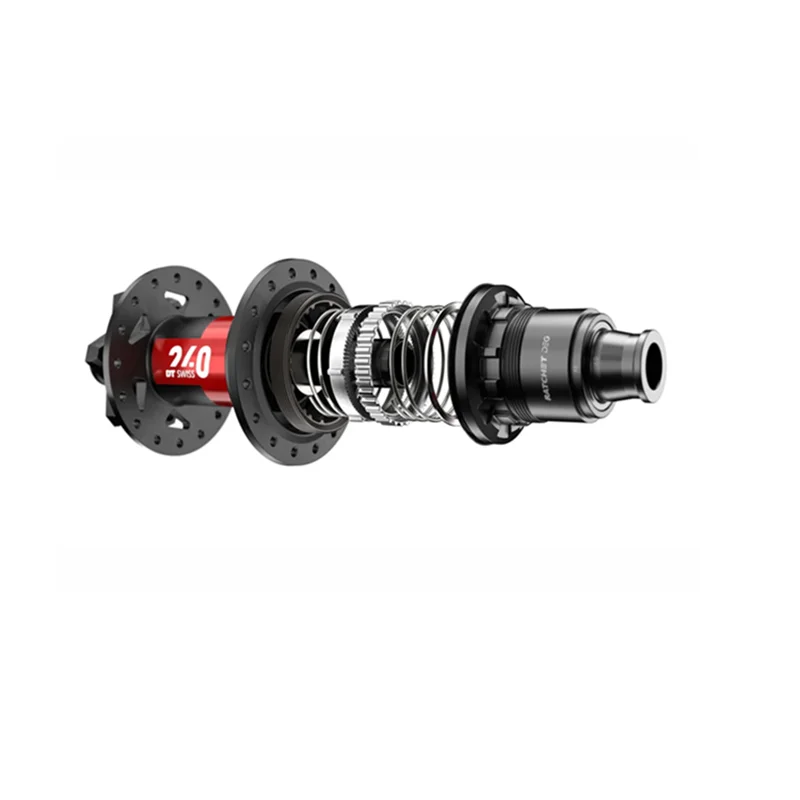

  • Freehub system: Ratchet EXP System 36T SL
  • Drivetrain: Shimano 12speed, Shimano, SRAM

Drive Train Options for the DT SWISS 240 MTB Rear Hub : Shimano, Shimano 12speed, SRAM

DT SWISS Shimano Freehub HG | Star Ratchet & EXP and DT SWISS Shimano Freehub HG | MTB STD

DT SWISS Shimano Microspline 12spd Freehub and DT SWISS Shimano 12spd Freehub | Star Ratchet & EXP

DT SWISS SRAM XD Freehub | Ratchet & EXP

TERMINOLOGY

Axle System: Thru-axle is a wheel mounting system. RWS technology from DT Swiss gives quick, precise mounting by turning an easily adjustable lever. The Thru-axle systems guarantee a rigid and secure connection between the wheel and frame. Check compatibility with the frame and fork for built-in-width, diameter, and thread of the axle, defined by the frame and fork manufacturer.

Brake Interface: Disc IS (6-bolt) (abv. for International Standard). The disc brake is mounted via 6 individual screws on the hub. In the event of a repair on the trail, no special tool is needed for disassembly, most MiniTool’s have a T25 Torx for disassembly of the six screws.

Built-In Dimension: 148mm Boost refers to wider axle dimensions. Frame and fork manufacturers use this to build a stiffer bike overall. Use a flatter spoke angle on the wheel to increase flange distance. This will improve symmetry and increase stiffness on large wheels.

Spoke Interface: Jbend Classic is a traditional type of spoke. Characterized by the 90-degree bend in the spoke head at one end, resembling the letter J.

For a comprehensive list of all spare parts, both user and technical manuals, as well as available conversion kits applicable to this specific product model view the official DT Swiss support page: https://www.dtswiss.com/en/support/product-support

Hub Spares:

DT SWISS Hub Spacer 10.7mm | Ratchet EXP

DT SWISS Rear Hub Seal | Star Ratchet & EXP
